Retractors
Retractors — ophthalmic surgical instruments from OscarTech UK, manufactured to clinical standards.
About our Retractors range
What's in this range
Lacrimal sac retractors (Stevenson, Agricola, Knapp) for lacrimal surgery, and Jaffe and Desmarres lid retractors in adult and child blade sizes for general lid procedures.
About the patterns
Stevenson and Agricola lacrimal sac retractors have 3x3 prongs (blunt or sharp) and a self-retaining, adjustable mechanism to hold the lacrimal sac open without an assistant. Knapp retractors use a 4-prong pattern for the same purpose. Jaffe lid retractors come as a pair of blades sized for adult or child use; Desmarres lid retractors are a simpler single-blade pattern.
Used with
Lacrimal sac retractors are typically used alongside lacrimal chisels and periosteal elevators and lacrimal probes during dacryocystorhinostomy (DCR) and other lacrimal surgery.
Ordering
Every instrument is listed with its reference code in the full reference code list below, ready to add to your quote. Use the list on the left to jump to an instrument, or contact us with the pattern you need.
Browse the catalogue page by page, then tick the codes you need in the full list below. Click a page to enlarge it.
| Product | Size / Colour | Ref Code | |
|---|---|---|---|
|

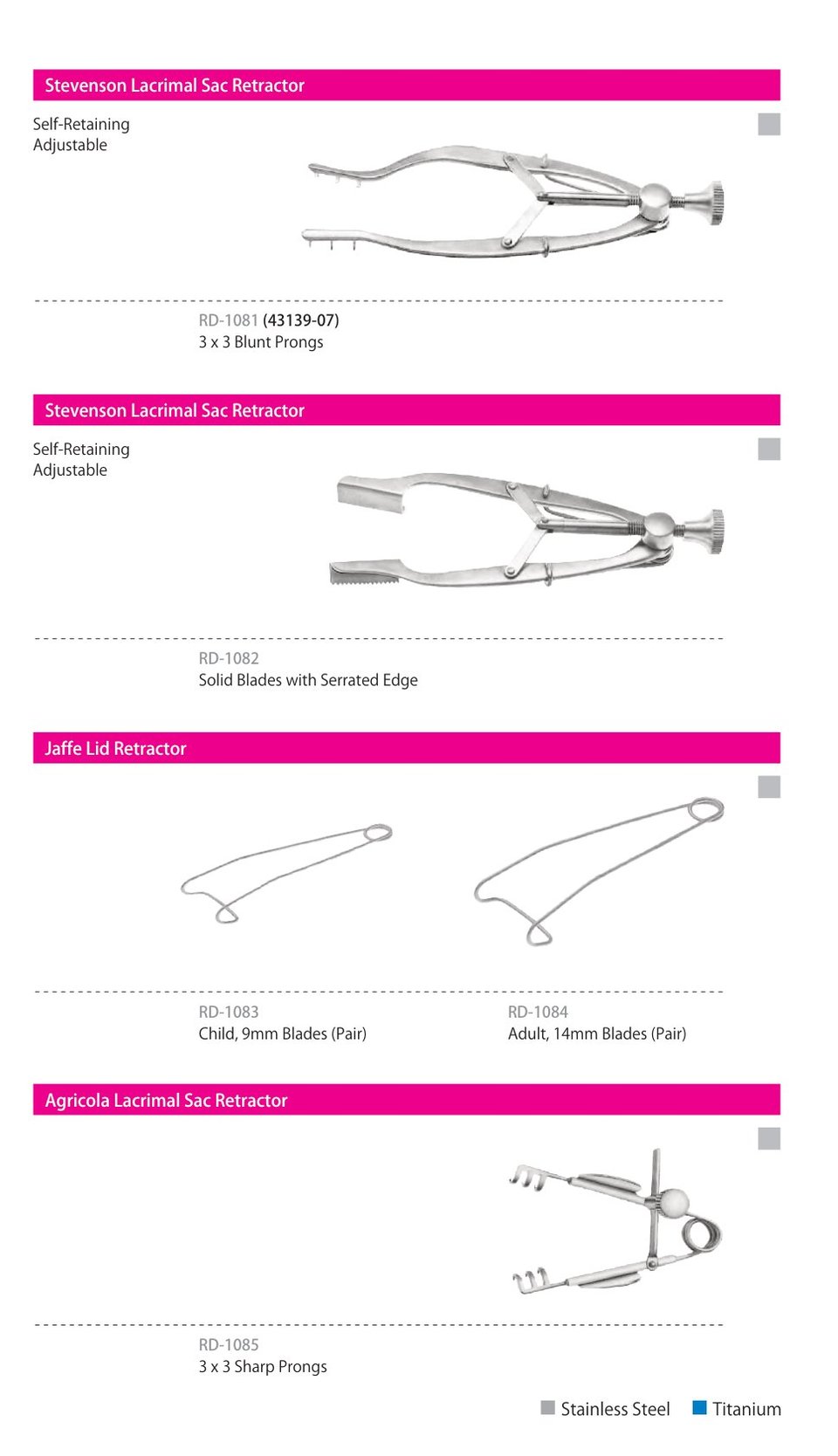

Stevenson Lacrimal Sac Retractor, 3x3 Blunt Prongs, Self-Retaining Adjustable
NHS Supply Chain ref: FCB118173 |
See catalogue | RD-1081 | |
|
Stevenson Lacrimal Sac Retractor, Solid Blades with Serrated Edge,Self-Retaining Adjustable
NHS Supply Chain ref: FCB118174 |
See catalogue | RD-1082 | |
 Jaffe Lid Retractor, Child,9mm Blades(Pair )
NHS Supply Chain ref: FCB118159 |
See catalogue | RD-1083 | |
 Jaffe Lid Retractor,Adult,14mmBlades(Pair)
NHS Supply Chain ref: FCB118207 |
See catalogue | RD-1084 | |
|
Agricola Lacrimal Sac Retractor, 3x3 Sharp Prongs
NHS Supply Chain ref: FCB118337 |
See catalogue | RD-1085 | |

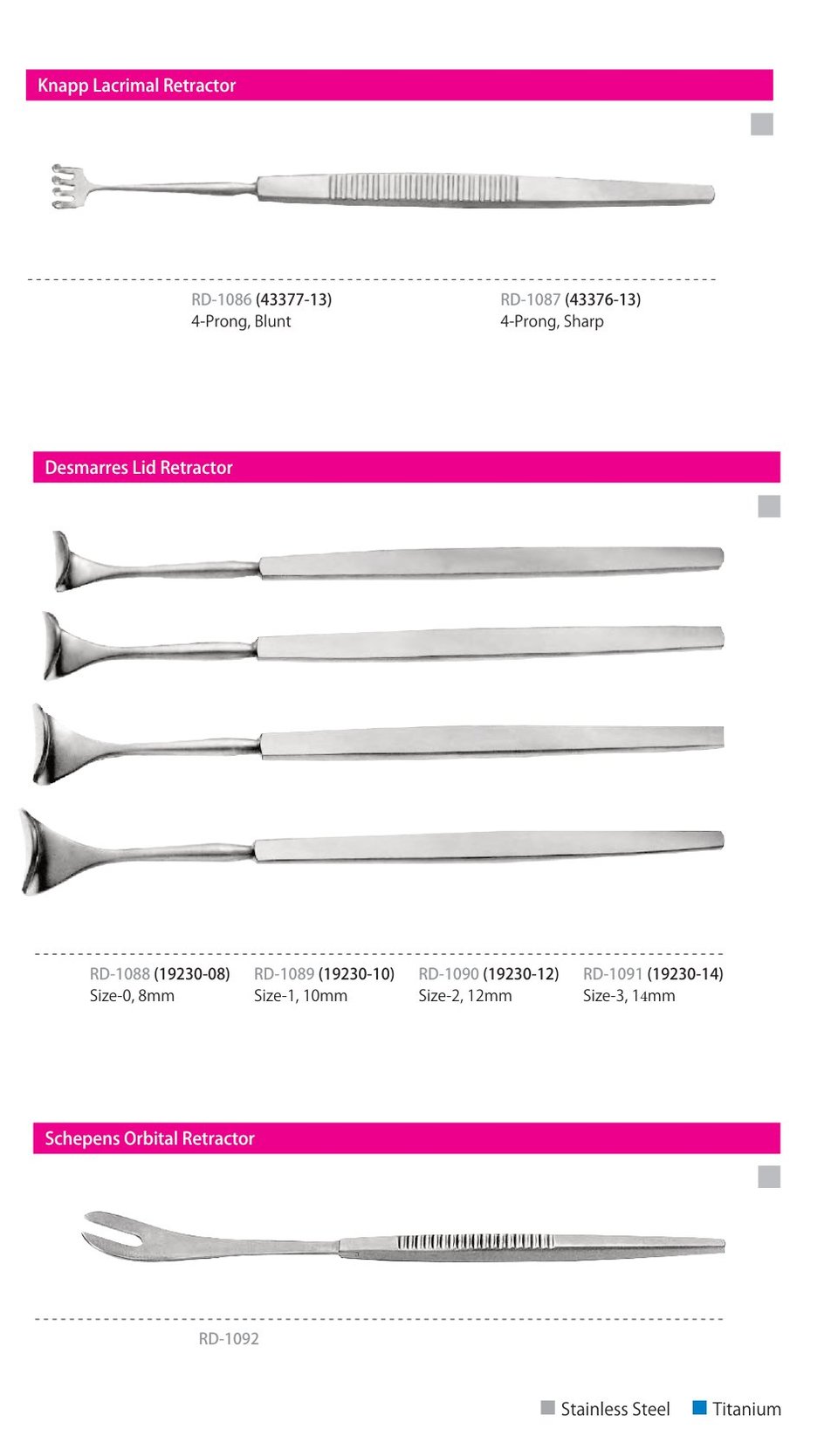

 Knapp Lacrimal Retractor, 4-Prong,Blunt
NHS Supply Chain ref: FCB118242 |
See catalogue | RD-1086 | |
|
Knapp Lacrimal Retractor, 4-Prong,Sharp
NHS Supply Chain ref: FCB118306 |
See catalogue | RD-1087 | |
 Desmarres Lid Retractor, Size-0,8mm
NHS Supply Chain ref: FCB118156 |
8mm | RD-1088 | |
|
Desmarres Lid Retractor, Size-1,10mm
NHS Supply Chain ref: FCB118293 |
10mm | RD-1089 | |
|
Desmarres Lid Retractor, Size- 2
NHS Supply Chain ref: FCB118378 |
12mm | RD-1090 | |
|
Desmarres Lid Retractor, Size- 2
|
14mm | RD-1091 | |
 Schepens Orbital Retractor
NHS Supply Chain ref: FCB118091 |
See catalogue | RD-1092 | |
 Walton Conjunctiva Retractor,Blade Length:6mm wide, Solid Thin
|
See catalogue | RD-1093 | |
 Helveston Tissue Retractor, Thin Curved Blade, Blade Length:7mm wide
NHS Supply Chain ref: FCB118112 |
See catalogue | RD-1094 | |
|
Helveston Tissue Retractor, Thin Curved Blade, Blade Length:9mm wide
NHS Supply Chain ref: FCB118278 |
See catalogue | RD-1095 | |
|
Helveston Tissue Retractor, Thin Curved Blade, Blade Length:11mm wide
NHS Supply Chain ref: FCB118239 |
See catalogue | RD-1096 |
What is a lacrimal sac retractor used for?
It retracts tissue during lacrimal sac surgery, such as dacryocystorhinostomy (DCR), to give clear access to the surgical site.
What's the difference between the Jaffe and Desmarres lid retractors?
Jaffe retractors are supplied as a matched pair of blades for two-handed lid retraction; the Desmarres pattern is a single blade, often used one-handed alongside another instrument.
