European Bayonet Bipolar Forceps

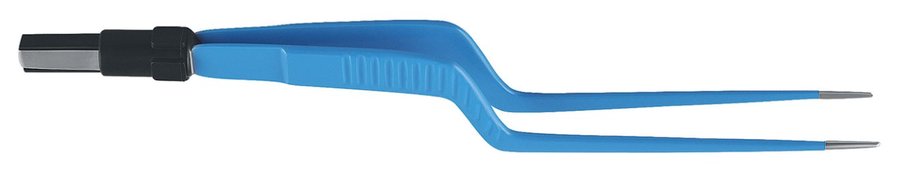

Bayonet bipolar forceps have an offset handle that keeps the hand out of the line of sight, with straight, angled-up and angled-down tips. 30 reference codes, reusable.
Bayonet bipolar forceps have an offset handle that keeps the hand out of the line of sight, with straight, angled-up and angled-down tips.
This page lists 30 reference codes (reusable), including irrigation, non-stick, ultra non-stick versions. Tip widths: 0.5, 1.0, 2.0 mm. The full list of codes and sizes is in the table below.
Please specify the tip width when ordering. It is added to the reference code as a suffix, e.g. -05 for 0.5 mm, -10 for 1.0 mm and -20 for 2.0 mm, or -00 for a needle tip.
Needs a bipolar cable matched to the forceps connector - see Electrosurgical Cables.
Ask for a quote with the reference codes you need, or contact us to confirm the right item for your setting.
Available sizes & codes
| Fig. | Product Code | Size / Style | |
|---|---|---|---|
| — | 310-160 | Bayonet, tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-170 | Bayonet, tips 0.5 / 1.0 / 2.0 mm, 7" (17.8 cm) | |
| — | 310-180 | Bayonet, tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-190 | Bayonet, tips 0.5 / 1.0 / 2.0 mm, 8¾" (22.0 cm) | |
| — | 310-200 | Bayonet, tips 0.5 / 1.0 / 2.0 mm, 9½" (24.0 cm) | |
| — | 310-162 | Bayonet (Ang. Up), tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-172 | Bayonet (Ang. Up), tips 0.5 / 1.0 / 2.0 mm, 7" (17.8 cm) | |
| — | 310-182 | Bayonet (Ang. Up), tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-192 | Bayonet (Ang. Up), tips 0.5 / 1.0 / 2.0 mm, 8¾" (22.0 cm) | |
| — | 310-202 | Bayonet (Ang. Up), tips 0.5 / 1.0 / 2.0 mm, 9½" (24.0 cm) | |
| — | 310-165 | Bayonet (Ang. Down), tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-175 | Bayonet (Ang. Down), tips 0.5 / 1.0 / 2.0 mm, 7" (17.8 cm) | |
| — | 310-185 | Bayonet (Ang. Down), tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-195 | Bayonet (Ang. Down), tips 0.5 / 1.0 / 2.0 mm, 8¾" (22.0 cm) | |
| — | 310-205 | Bayonet (Ang. Down), tips 0.5 / 1.0 / 2.0 mm, 9½" (24.0 cm) | |
| — | 310-160 NS | Bayonet (non-stick), tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-170 NS | Bayonet (non-stick), tips 0.5 / 1.0 / 2.0 mm, 7" (17.8 cm) | |
| — | 310-180 NS | Bayonet (non-stick), tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-190 NS | Bayonet (non-stick), tips 0.5 / 1.0 / 2.0 mm, 8¾" (22.0 cm) | |
| — | 310-200 NS | Bayonet (non-stick), tips 0.5 / 1.0 / 2.0 mm, 9½" (24.0 cm) | |
| — | 310-160 UNS | Bayonet (ultra non-stick), tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-170 UNS | Bayonet (ultra non-stick), tips 0.5 / 1.0 / 2.0 mm, 7" (17.8 cm) | |
| — | 310-180 UNS | Bayonet (ultra non-stick), tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-190 UNS | Bayonet (ultra non-stick), tips 0.5 / 1.0 / 2.0 mm, 8¾" (22.0 cm) | |
| — | 310-200 UNS | Bayonet (ultra non-stick), tips 0.5 / 1.0 / 2.0 mm, 9½" (24.0 cm) | |
| — | 310-160 IR | Bayonet (irrigation), tips 0.5 / 1.0 / 2.0 mm, 6½" (16.5 cm) | |
| — | 310-180 IR | Bayonet (irrigation), tips 0.5 / 1.0 / 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-180 TC | Bayonet (tungsten carbide tips), tip 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-182 TC | Bayonet (Ang. Up) (tungsten carbide tips), tip 2.0 mm, 7¾" (20.0 cm) | |
| — | 310-185 TC | Bayonet (Ang. Down) (tungsten carbide tips), tip 2.0 mm, 7¾" (20.0 cm) |
